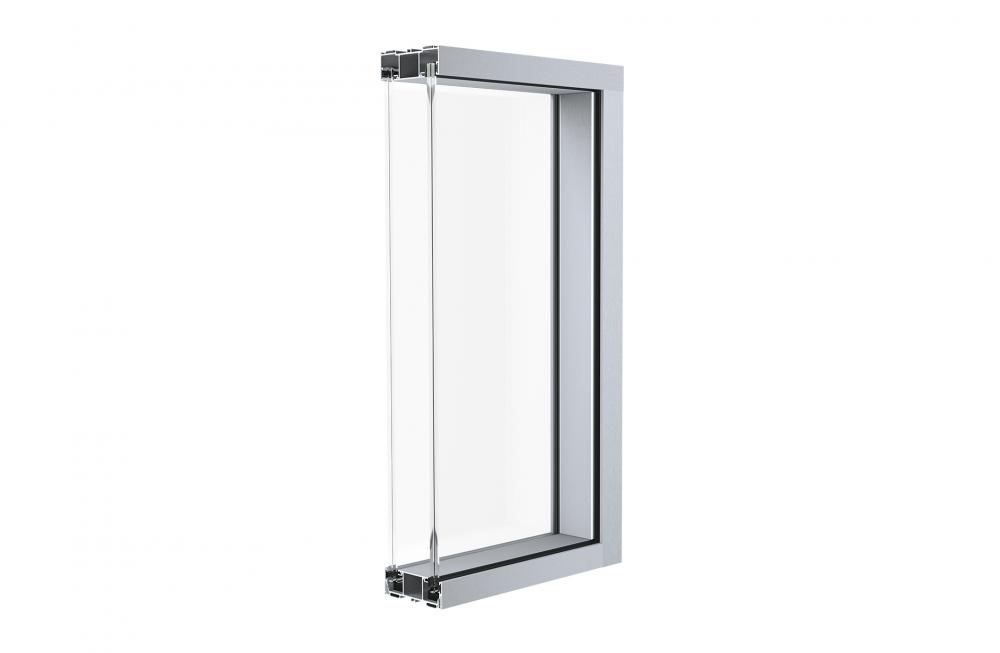

System Silence
Acoustic insulation: Rw 43 - 49 dB
- Single- and double-glazed system

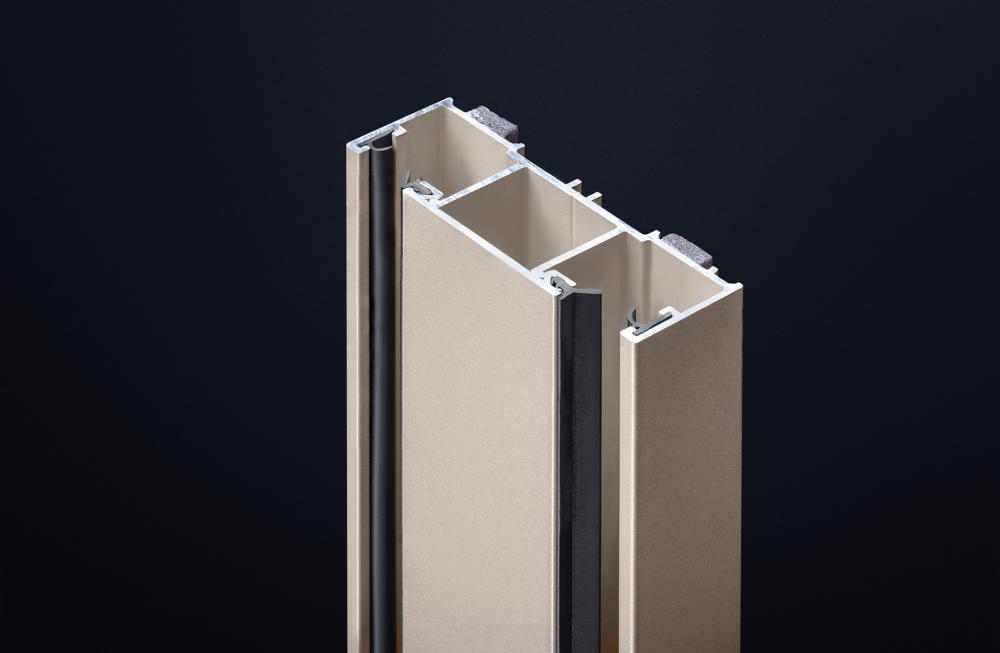

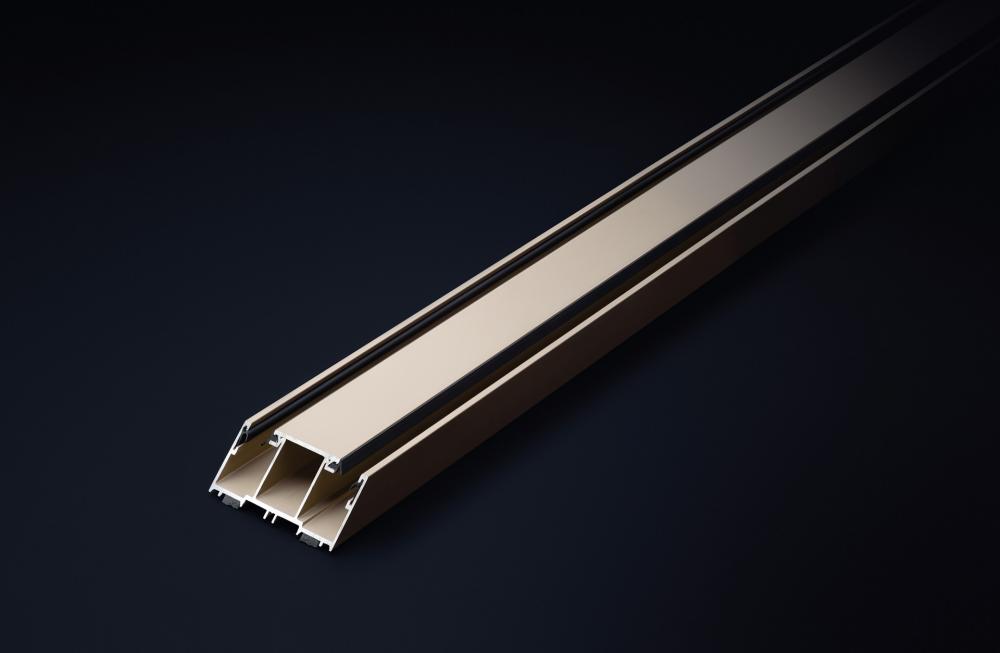

- Structural profiles 25 mm or 30 mm high and 78 mm thick
- Maximum height: 3,500 mm
- Aluminium profiles: powder coated according to the RAL palette Glass panes joined using double-sided adhesive tape or microprofiles
- Filling of walls with laminated or toughened safety glass with a thickness of 10 mm ÷ 12 mm
- Possibility of placing light switches on the frame profile
- There is an option to make decorative films or install manual or electric blinds.
An elegant and flexible system that offers the functionality required in modern architectural designs.
A double-glazed system with exceptionally original features. It is a guarantee of the implementation of the most demanding architectural visions. The Silence system offers a wide range of possibilities for the construction of flexible and broken walls. The profiles are available in two heights - 25 mm and 30 mm. With this solution, high acoustic insulation parameters can be achieved with mullion-free glass walls. Silence allows the creation of a number of non-standard arrangements that make the designed space look modern and spacious.
Specification
| Glazed walls | Glazing | Acoustic insulation Rw |
|---|---|---|
| Full-height glazed | VSG 55.1 + ESG 12 | Rw = 43 dB |
| Full-height glazed | VSG 55.1 + VSG 66.1 | Rw = 43 dB |
| Full-height glazed | VSG 66.1 + VSG 66.1 | Rw = 44 dB |
| Full-height glazed | VSG 55.2 + VSG 66.2 | Rw = 45 dB |
| Full-height glazed | VSG 66.2Si + VSG 66.1 | Rw = 45 dB |
| Full-height glazed | VSG 55.2Si + VSG 66.2Si | Rw = 47 dB |
| Full-height glazed | VSG 66.2Si + VSG 66.2Si + AKU | Rw = 49 dB |
